Purpose
This tutorial explains how to connect the MB1225 evaluation kit to a PC Linux for flashing the software.
Prerequisites
- A STMicroelectronics discovery kit with STM32F769NI MCU, order code 32F769IDISCOVERY (name on PCB: STM32F769I-DISCO).
- USB 2.0 male to micro USB cable (supplied with evaluation kit).
- A full installation of an Hyperpanel OS release on a linux based PC including tools for flashing and debugging. This tutorial requires release V30.01.01 for MB1225 or higher. Hyperpanel OS releases are available for free in the “Download” section of the website.
- A Lunix PC with ARM gcc compiler, ARM gdb debuffer and minicom installed.
Description
- On www.tutorial.hyperpanel.com, select “Download” from the main menu.
- Download “Hyperpanel OS V30.01.01 for MB1225” or higher release for the MB1225 kit. (hypv300101.zip).
- On your PC Linux, copy and unzip the zip file in your root directory, for example:
cp hypv300101.zip /home/hyperpanel cd /home/hyperpanel unzip hypv300101.zip
- With a text editor, update hhome environment variable in the stm32m7 file:
cd ~/hypv300101/shells vi stm32m7Update the first line, according to your root directory:
export hhome=/home/hyperpanel/hypv300101
- Save this file and an execute the command:
source stm32m7 - Connect the MB1225 board to a USB port on your Linux PC using the USB cable supplied with the board. Wait for a window to appear, then close it.
- Open a Terminal window and run minicom to get access to the Hyperpanel OS serial port and to the application messages:
minicom -D /dev/ttyACM0 -b 115200 - Open another Terminal window on your computer and enter the following commands:
cd ~/hypv300101/shells source stm32m7 exe
- Upload software to the board:
hgdb romload stm32m7 <file>You should see messages similar to these:
Open On-Chip Debugger 0.10.0+dev-00001-g0ecee83-dirty (2017-02-10-06:53) Licensed under GNU GPL v2 For bug reports, read http://openocd.org/doc/doxygen/bugs.html 0x08005634 in ?? () target halted due to debug-request, current mode: Thread xPSR: 0x01000000 pc: 0x080052e4 msp: 0x20002000 auto erase enabled Ignoring packet error, continuing... target halted due to breakpoint, current mode: Thread xPSR: 0x61000000 pc: 0x20000046 msp: 0x20002000 wrote 524288 bytes from file <file>.bin in 10.224703s (50.075 KiB/s) Cannot access memory at address 0xffffffff <file>.elf: No such file or directory.Wait until the flashing operation is complete (approx. 30 seconds). The last message (<file>.elf: No such file or directory) is normal.
MB1225 evaluation board

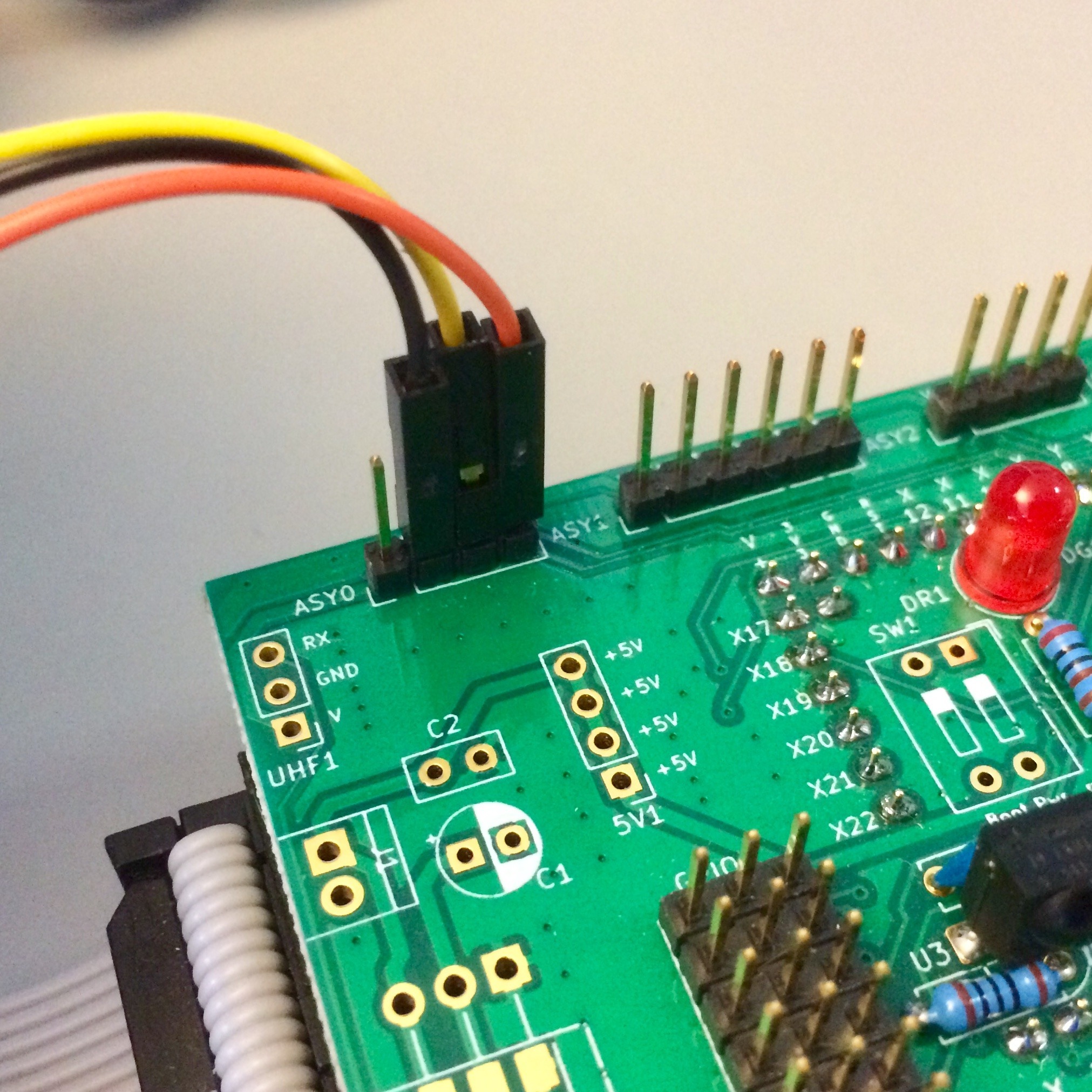

USB connection to the evaluation board

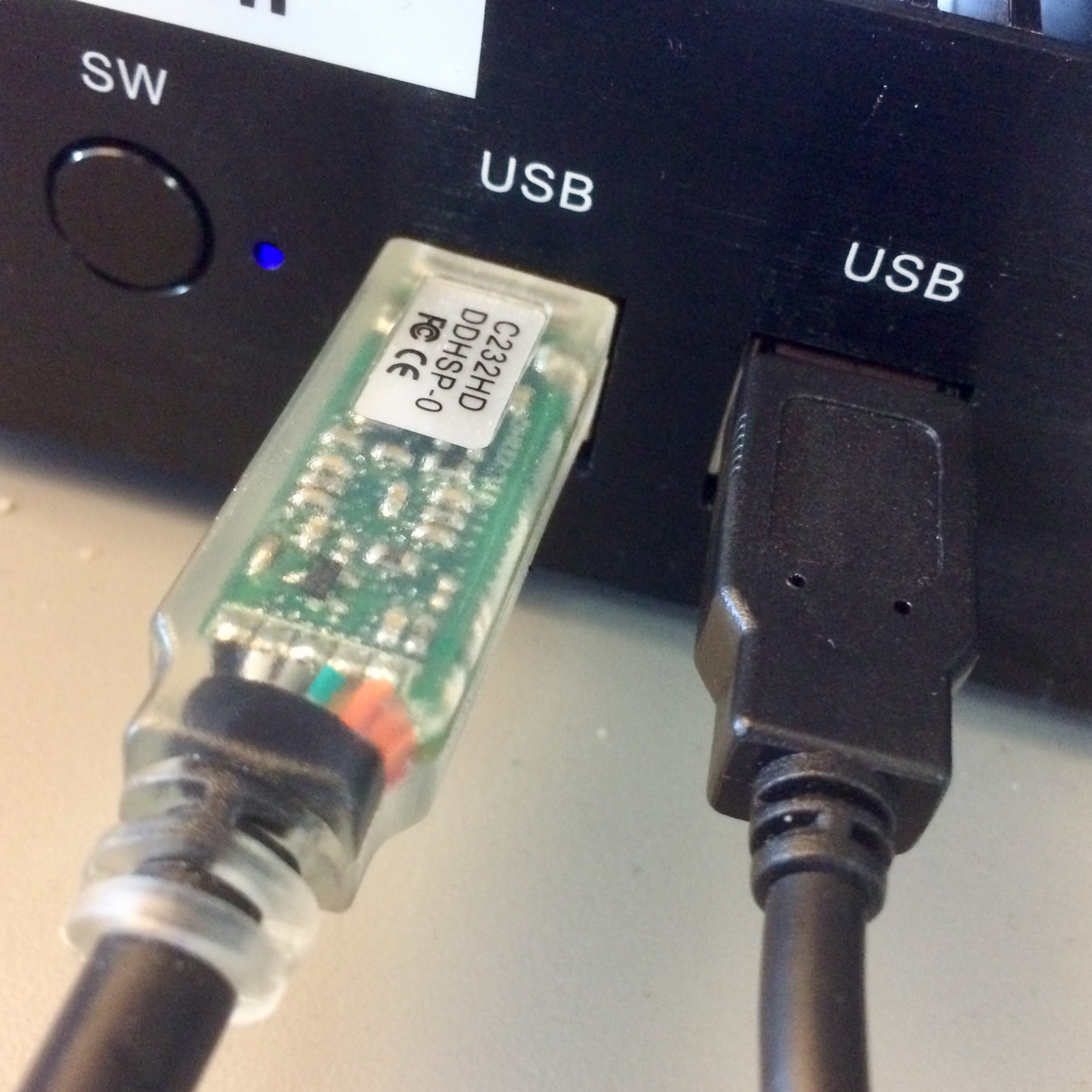

USB connection to the computer
Terminal
~/hypv100302/boards/stm32m7/exe >> hgdb
GNU gdb (7.10-1ubuntu3+9) 7.10
Copyright (C) 2015 Free Software Foundation, Inc.
License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law. Type "show copying"
and "show warranty" for details.
This GDB was configured as "--host=x86_64-linux-gnu --target=arm-none-eabi".
Type "show configuration" for configuration details.
For bug reporting instructions, please see:
<http://www.gnu.org/software/gdb/bugs/>.
Find the GDB manual and other documentation resources online at:
<http://www.gnu.org/software/gdb/documentation/>.
For help, type "help".
Type "apropos word" to search for commands related to "word".
man Display again this manual
stm32m7 Send the reset halt command to openocd
armdisconnect Deconnexion command
peek adr Read and display a 32 bit value at adr
poke adr val Write a val 32 bits value at adr
poke_m adr msk val Write bits in a 32 bits word with a mask
peekrange base o1 o2 Read 32 bits words from base+o1 to base+o2
affichb adr size Print a memory area starting at adr
vmio n Display the tnote_evt_s debug table
int Display the tnote_it debug table
rte Return from interrupt
romload stm32m7 app Write the app executable file in flash
rom stm32m7 app Connect to target and load app dbg symbols
gpio bank n state Set GPIO n (0-15) of bank (1-9) to 0/1
clock 0/1/2/3 Output SYSCLK/PLLI2S/HSE/PLL to MO2/PC9
(gdb) romload stm32m7 <file>
Open On-Chip Debugger 0.10.0+dev-00001-g0ecee83-dirty (2017-02-10-06:53)
Licensed under GNU GPL v2
For bug reports, read
http://openocd.org/doc/doxygen/bugs.html
0x00002ed2 in ?? ()
target halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x00003148 msp: 0x10002000
auto erase enabled
target halted due to breakpoint, current mode: Thread
xPSR: 0x61000000 pc: 0x20000046 msp: 0x10002000
wrote 393216 bytes from file <file>.bin in 11.088839s (34.629 KiB/s)
(gdb)
